Excellent computing power
Powerful processing capability: Supports 2 4th or 5th generation Intel® Xeon® Scalable processors, with a maximum power consumption of 385W for a single processor.
High-density GPU support: Up to 8 GPU modules can be configured, suitable for large-scale parallel computing and deep learning training.
High-speed memory: Equipped with 32 memory slots, supports a single memory of up to 256GB, with a frequency of up to 5600 MT/s.
|
|
Flexible expansion
Storage options: Supports up to 25 2.5-inch hard drives and 8 NVMe SSDs, providing ultra-large capacity or ultra-high-speed storage.
Network connection: Equipped with 1 OCP 3.0 network card slot, different network configurations can be selected according to needs.
PCIe expansion: Provides up to 13 PCIe slots, including 12 standard PCIe slots and 1 OCP 3.0 slot to meet diverse expansion needs.
|
Energy-efficient design

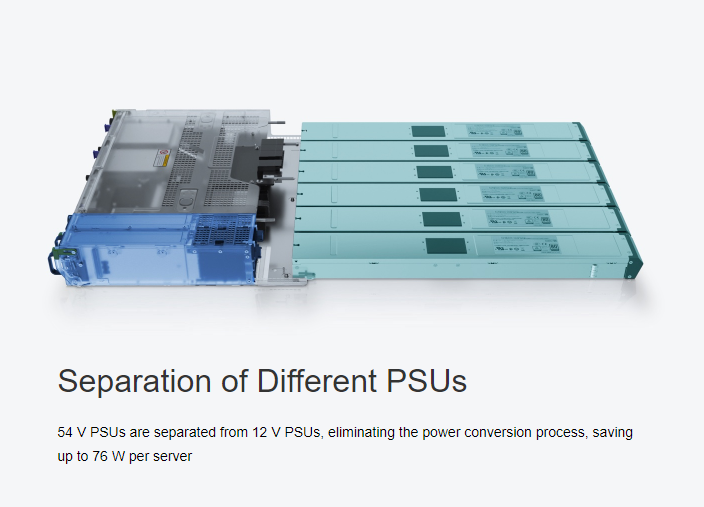

Efficient heat dissipation: Adopting the industry's innovative GPU combined with MPC algorithm, fan power consumption is reduced by 1.1%; equipped with super fusion 8080++ fan, heat dissipation capacity is increased by 20% to 30%, and energy efficiency is increased by 16%. Efficient power supply: Self-developed titanium power supply, high efficiency, a single server can save up to 200W; 54V and 12V power supply dual partition design, reduce power conversion loss, a single server can save up to 76W.
|
 |
High reliability Redundant design: Supports N+1 fan redundancy and N+M power redundancy to ensure stable system operation.
Modular maintenance: Supports replacement of GPU modules, CPU computing modules, fans, power supplies, network cards and other modules without removing them from the shelf, shortening maintenance time by 2.5 times.
Easy to manage
Intelligent management: Integrated iBMC chip, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features.
Operating system compatibility: Supports multiple operating systems, including Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, etc.
|
