Excellent performance
High-density GPU support: Supports up to 10 double-wide GPU cards, significantly improving AI computing capabilities.
Powerful memory capacity: Equipped with 32 DDR5 memory slots, supporting a single memory of up to 256GB, with a frequency of up to 5600 MT/s.

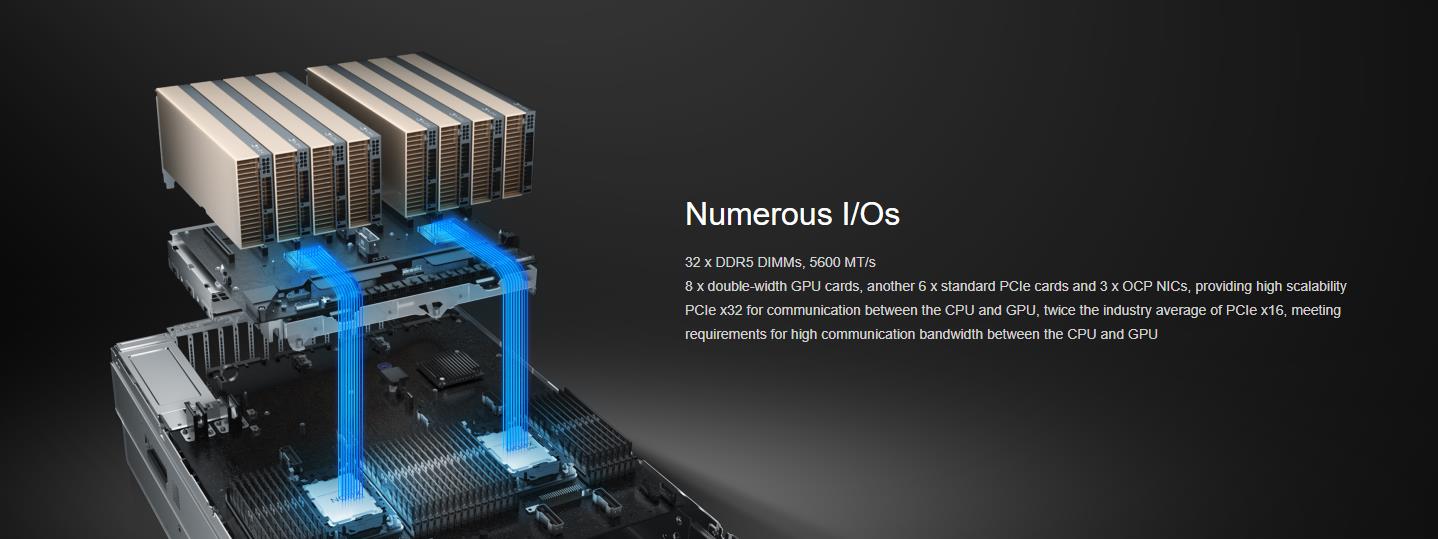

High-speed I/O: Provides 14 PCIe 5.0 standard slots, 10 of which are dedicated to GPU cards, ensuring high-bandwidth data transfer.
|
|
Flexible architecture
Topology switching: Supports one-click switching between cascade and balanced topologies to meet different application requirements.
Retimer-free design: No PCIe Retimer chip required, reducing latency and power consumption.
GPUDirect support: Supports GPUDirect Storage, RDMA and P2P, suitable for large-scale cluster deployment
|
High reliability
Redundant fans: Equipped with 6 or 8 hot-swappable counter-rotating fans, supporting N+1 redundancy to ensure system heat dissipation.
Wide operating temperature: Supports an operating temperature range of 5℃ to 35℃ to adapt to a variety of environments.
Redundant power supply: Configurable with 4 3000W titanium-level power supplies, supporting N+N or N+M redundancy to ensure power supply.
|
 |
Easy to deploy and manage
Flexible storage: Supports up to 24 3.5-inch hard disks or 12 NVMe SSDs, providing large-capacity or high-speed storage options.
Intelligent management: Integrated iBMC chip, providing comprehensive management features such as fault diagnosis, automated operation and maintenance, and hardware security reinforcement.
Operating system compatibility: Supports multiple operating systems, including FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler, etc.
|
